6 major precautions for operating a crepe machine

Crepe sheet machine is an extremely important mechanical equipment in the process of natural rubber processing. When the crepe machine is in operation, the two rollers rotate relative to each other at different speeds. When the rubber clump passes through the crepe machine, the rubber clump is subjected to strong rolling and shearing effects. Not only is the rubber clump dehydrated and wrinkled on the surface, but it also has the function of removing impurities inside the clump. Next, let's talk about several situations that crepe machine operators should pay attention to during the operation of the crepe machine unit? 6 major precautions for safety production operation of crepe machine

1、 Before starting the crepe machine, personnel from each position must be present and ready to start after confirming that everything is normal;

2、 When starting the crepe unit, the management personnel must start the equipment in order from front to back;

3、 When starting the production line of the crepe sheet machine, the next crepe sheet machine can only be started after the time of the crepe sheet machine has changed and the relevant buttons emit a normal indicator light;

4、 When the crepe machine is blocked by glue during operation, the subsequent crepe machine should be stopped and the conveying and feeding should be stopped;

5、 If there is any strange sound or abnormal noise during the operation of the crepe machine, it should be stopped immediately and reported to the on duty management personnel, and the maintenance personnel should be notified in a timely manner for * * inspection.

6、 After the work of the crepe machine is completed, cut off the power supply of the crepe machine, clean the site, and maintain a clean and hygienic production working environment.

[Product Introduction of Crepe Sheet Machine]

The main roller of the crepe machine is made of alloy parts, which have the characteristics of corrosion resistance and wear resistance. The service life of the rubber material is over 5500T, with good dehydration effect and high production efficiency.

[Purpose of Crepe Sheet Machine]

The crepe machine utilizes the relative rotational motion of the front and rear rollers of the roller pressing mechanism to flatten and flatten the rubber material, and squeeze out the moisture and impurities of the rubber material. At the same time, the speed difference between the front and rear rollers causes the rubber material to wrinkle and tear into diamond shaped, strip shaped, and honeycomb shaped crepe pieces. This machine is configured for use on the production line according to production requirements.

[Crepe Sheet Machine Product Parameters]

Please directly click on the crepe machine model in the chart to jump to the corresponding crepe machine model page

Rubber crepe sheet machine, crepe sheet machine, mud rubber crepe sheet machine, miscellaneous rubber crepe sheet machine, natural rubber crepe sheet machine, cigarette rubber crepe sheet machine, standard rubber crepe sheet machine

Crepe machine, Zhenghe Machinery, Rubber Crepe machine

Crepe machine model: ZP300 * 600 ZP350*700、ZP450*760、ZP560*760、ZP610*760

Model：ZP300*600 、ZP350*700、ZP450*760、ZP560*760、ZP610*760

Crape machine roller specification (mm): Φ 300 * 600 Φ350*700 、Φ450*760 、Φ560*760 、Φ610*760

Roller Speci Fixation (mm): Φ350*700 、Φ450*760 、Φ560*760 、Φ610*760

Crepe machine motor power (kW): 15, 22-30, 37-45, 75, 90

Motor Power (kw): 15, 22-30, 37-45, 75, 90

Crepe machine production capacity (kg/h): 2000, 3000, 4000, 8000, 10000

Production Capacity (kg/h): 2000, 3000, 4000, 8000, 10000

External dimensions of the crepe machine (length * width * height): 2260 * 1600 * 1500, 2800 * 2050 * 1500, 2800 * 2100 * 1600, 4200 * 1800 * 1750, 4300 * 1850 * 2400

Dimension L*W*H）： 2260*1600*1500 、2800*2050*1500 、2800*2100*1600 、4200*1800*1750 、4300*1850*2400

Crepe machine weight (kg): 3500, 4600, 5900, 9800, 10000

Weight (kg): 3500, 4600, 5900, 9800, 10000

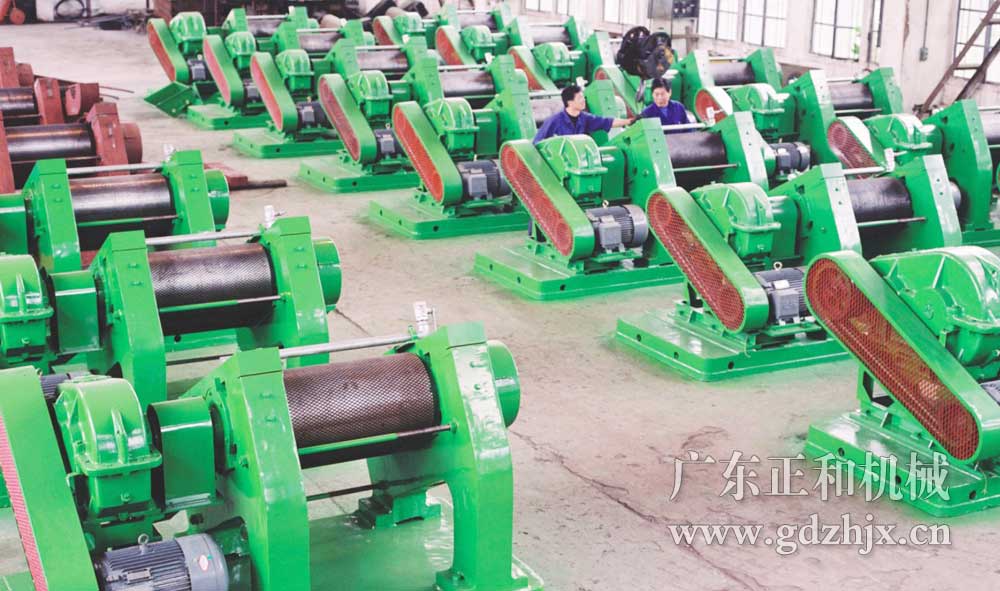

The crepe machine is about to be shipped

Crepe machine type:

Crepe machine brand: Zhenghe

Crepe machine model:

Principle of Crepe Sheet Machine:

Purpose of the crepe machine:

Crepe machine parameters:

The main features of the crepe machine are:

Rubber crepe machine

Zhenghe rubber crepe machine

The above is the relevant content of Guangdong Zhenghe Machinery Network on the 6 precautions for operating the crepe machine. If you would like to learn more about the exploration, design, production, production, installation, commissioning, maintenance, and repair of rubber processing equipment and sugarcane sugar making equipment, please feel free to contact the business specialist of Guangdong Zhenghe Machinery Co., Ltd. via WeChat or phone. Zhenghe Machinery will warmly serve you. Service hotline: 13824803990, 0759-3363353; WeChat ID: 13828211689
