Rubber dry mixer_ Dry mixer_ Natural rubber dry mixer_ China Rubber dry mixer_ Rubber pretreatment equipment

[Product Introduction of Rubber Drying Mixer]

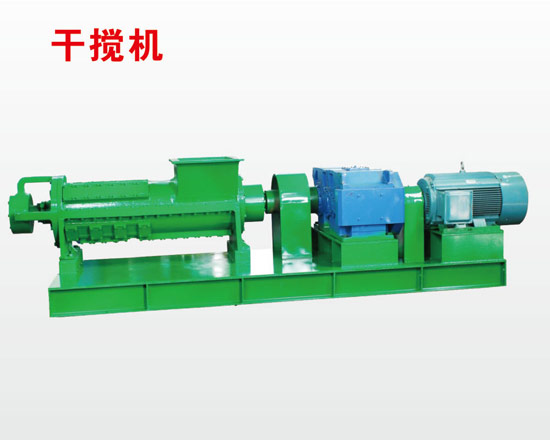

Rubber drying mixer, the movable knife arranged in a spiral shape on the rotating shaft and the fixed knife installed on the casing move relative to each other in the machine. The heat generated by the shearing and extrusion of the rubber material reduces the moisture content of the rubber material and reduces the moisture content of the rubber material. Knead all kinds of glue evenly. It is used to reduce the moisture content of dried rubber blocks, eliminate white spots, improve consistency and prepare special-purpose rubber materials.

【Rubber drying mixer use】

Rubber dry mixer, the rubber dry mixing device consists of a movable knife assembled on the main shaft and three fixed knives assembled on the body. The movable knife is arranged in a spiral shape in the axial direction, and there is a certain slope on the cutting edge. However, when the spindle rotates, because there is a certain gap between the movable knife and the fixed knife, the rubber material is cut, rubbed, squeezed, and mixed. Under the action of axial force, the rubber material is pushed out of the discharge end. The discharge end is equipped with a fixed sieve plate knife and an adjustable sieve plate knife. The rubber material is extruded from the sieve plate. A certain number of long slots are arranged on the sieve plate. The rubber material processed by the dry glue machine is in the form of long and thin strips. shape. Because the rubber material is repeatedly acted upon by axial radial forces in the abdominal cavity of the machine, the tangential shear force is large, causing the rubber material to gain greater heat. The produced rubber material not only eliminates white spots, increases uniformity, but also reduces the content of the rubber material. Amount of water.

    Dry mixing machine, rubber drying and dewatering mechanical equipment, composite rubber rubber dry mixing device

Rubber dry mixer type:

Rubber drying mixer brand:

Rubber dry mixer model:

Rubber drying mixer principle:

Rubber dry mixer uses:

Rubber drying mixer parameters:

Main features of rubber drying mixer:


    In the dry mixer, the movable knives arranged in a spiral arrangement on the rotating shaft and the fixed knives on the casing move relative to each other. The heat generated by the shearing and extrusion of the rubber material reduces the water content of the rubber material and reduces The rubber material is evenly kneaded. Used to reduce the moisture content of the dried rubber block, eliminate white spots, improve consistency and prepare special-purpose rubber.

    The dry stirring device of the dry mixer is composed of a movable knife assembled on the main shaft and three fixed knives assembled on the body. The movable knife is arranged in a spiral shape in the axial direction, and the cutting edge has a certain slope, but when the main shaft rotates, due to a certain gap between the movable knife and the fixed knife, the rubber material is cut, rubbed, squeezed, and mixed. Under the action of the force, push the rubber material to the extruded end. The discharge end is equipped with a fixed sieve plate knife and an adjustable sieve plate knife. The rubber material is extruded from the sieve plate. A certain number of long slots are arranged on the sieve plate. The rubber material processed by the dry glue machine is slender. shape. Due to the repeated action of the radial force of the rubber in the abdominal cavity of the machine, the tangential shear force is large, so that the rubber obtains greater heat. The produced rubber not only eliminates white spots, increases uniformity, and reduces the rubber content. Water volume.

The dry mixer uses the relative motion of the movable knife installed on the main shaft and the fixed knife on the machine body to chop the rubber material. The heat generated by shearing, friction and extrusion during the processing reduces the moisture content of the rubber material and eliminates whitening. points to enhance uniformity. Features: Used for processing composite rubber, CV rubber, RT rubber, installed after the dryer to reduce white spots. This machine is the final processing equipment before pellet packaging and is used to produce higher quality rubber crumbs by reducing residual moisture and white spots in the previous drying stage. The casing is equipped with one set of flying knives fixed on the spindle and three sets of knives fixed in the casing. The flying knives are arranged in a spiral along the axis, and the blade has a certain slope. When the shaft rotates, the rubber is broken by the flying knife and the fixed knife, and then is pushed forward to the discharge end under the action of axial thrust. The discharge end is equipped with a sieve plate, and the rubber is extruded from the sieve plate holes in a long strip. The heat generated during shearing, friction, and extrusion reduces the water content and white spots, and at the same time increases its consistency. The movable knife arranged in a spiral shape on the rotating shaft and the fixed knife installed on the casing of the rubber drying mixer move relative to each other. The heat generated by the shearing and extrusion of the rubber material reduces the moisture content of the rubber material and separates each component. Knead the glue material evenly. It is used to reduce the moisture content of dried rubber blocks, eliminate white spots, improve consistency and prepare special-purpose rubber materials. The dry stirring device of the rubber dry mixer consists of a movable knife assembled on the main shaft and three fixed knives assembled on the body. The movable knife is arranged in a spiral shape in the axial direction, and there is a certain slope on the cutting edge. However, when the spindle rotates, because there is a certain gap between the movable knife and the fixed knife, the rubber material is cut, rubbed, squeezed, and mixed. Under the action of axial force, the rubber material is pushed out of the discharge end. The discharge end is equipped with a fixed sieve plate knife and an adjustable sieve plate knife. The rubber material is extruded from the sieve plate. A certain number of long slots are arranged on the sieve plate. The rubber material processed by the dry glue machine is in the form of long and thin strips. shape. Because the rubber material is repeatedly acted upon by axial radial forces in the abdominal cavity of the machine, the tangential shear force is large, causing the rubber material to gain greater heat. The produced rubber material not only eliminates white spots, increases uniformity, but also reduces the content of the rubber material  Amount of water.
